TA-Pro Series
Food Texture Analyzer

0.01N force resolution · 500Hz data capture · 50+ probes included · Full TPA curve

Request a QuoteDownload Datasheet
KHT Instrument TA-Pro 200 Food Texture Analyzer front view
TA-Pro front product image/images/ta-pro-product.jpg
0.01N
Resolution
500Hz
Sampling
50+
Probes
Quote
Pricing
200/500N
Force
2yr
Warranty

Complete Specifications

TA-Pro 200
Standard Laboratory Model — Most Popular
SpecificationValue
Maximum Force Capacity200 N (20 kgf)
Force Resolution0.01 N (10 mN) — 10× finer than entry-level
Force Accuracy±0.5% full scale
Speed Range0.01 – 40 mm/s
Distance Range0 – 300 mm
Distance Resolution0.001 mm (1 μm)
Data Acquisition Rate500 Hz
Load Cell Options1N / 10N / 50N / 200N (interchangeable)
Temperature RangeAmbient (optional Peltier stage: 5–60°C)
ConnectivityUSB 2.0 to Windows PC
SoftwareTA-Analyzer Pro (Windows 10/11)
Power Supply100–240V AC, 50/60Hz
Dimensions (W×D×H)280 × 350 × 650 mm
Weight18 kg
Warranty2 years (parts + labor)
PricingRequest a quote (full probe kit included)
TA-Pro 500
High-Force Model — Meat, Cereal, Snack Bar
SpecificationValue
Maximum Force Capacity500 N (50 kgf)
Force Resolution0.01 N (10 mN)
Force Accuracy±0.5% full scale
Speed Range0.01 – 40 mm/s
Load Cell Options10N / 100N / 500N (interchangeable)
Data Acquisition Rate500 Hz
ConnectivityUSB 2.0 to Windows PC
Warranty2 years (parts + labor)
PricingRequest a quote (full probe kit included)

Probe and Fixture Library

Every TA-Pro ships with 50+ probes as standard. No extras to purchase — the complete kit arrives with your instrument.

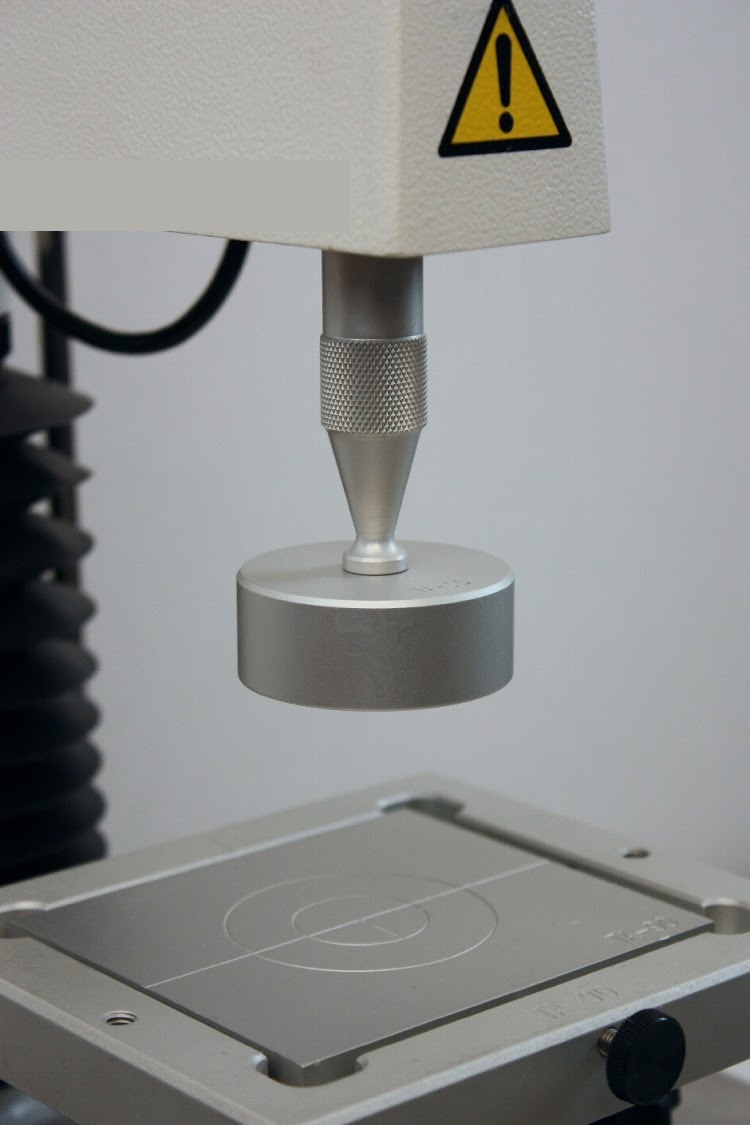

Cylindrical compression probe on texture analyzer

Compression Probes

  • ›P/2 — 2mm cylinder (gel penetration, Bloom)
  • ›P/6 — 6mm cylinder (cheese, confectionery)
  • ›P/12.7 — 12.7mm cylinder (gelatin Bloom, AOAC 935.04)
  • ›P/25 — 25mm cylinder (bread, cake, TPA)
  • ›P/50 — 50mm flat platen (large samples)
  • ›P/HDP/90 — 90mm platen (whole loaf)
  • ›P/BALL/0.5 — 0.5mm ball (fruit skin)

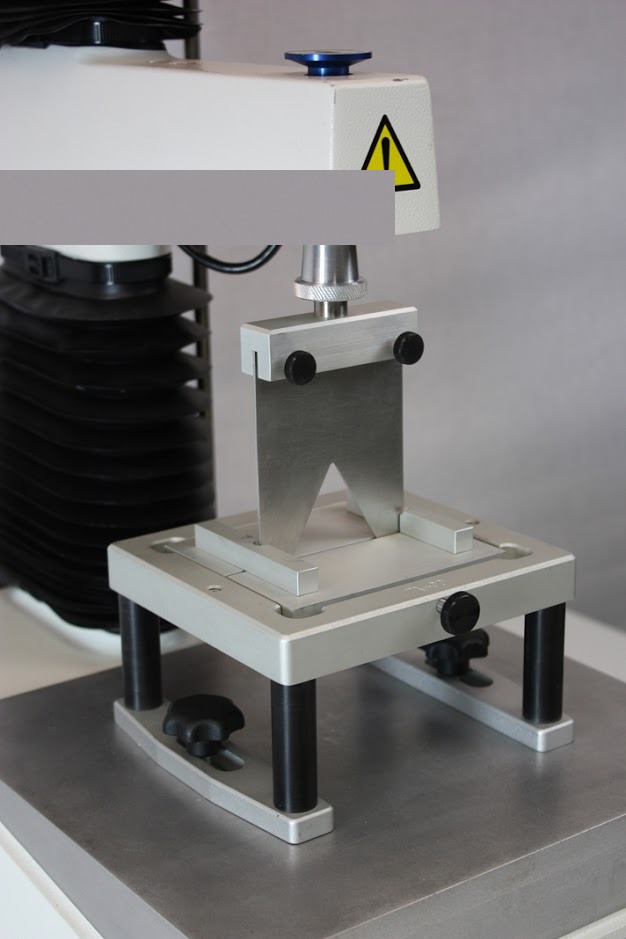

Warner-Bratzler V-slot blade for meat tenderness testing

Cutting and Shear

  • ›WB/BS — Warner-Bratzler V-slot (meat WBSF)
  • ›TA/KSB — Kramer shear cell, 5-blade
  • ›TA/PBS — Pasta/bread slicing blade
  • ›TA/SBA — Single blade cutter (chocolate snap)

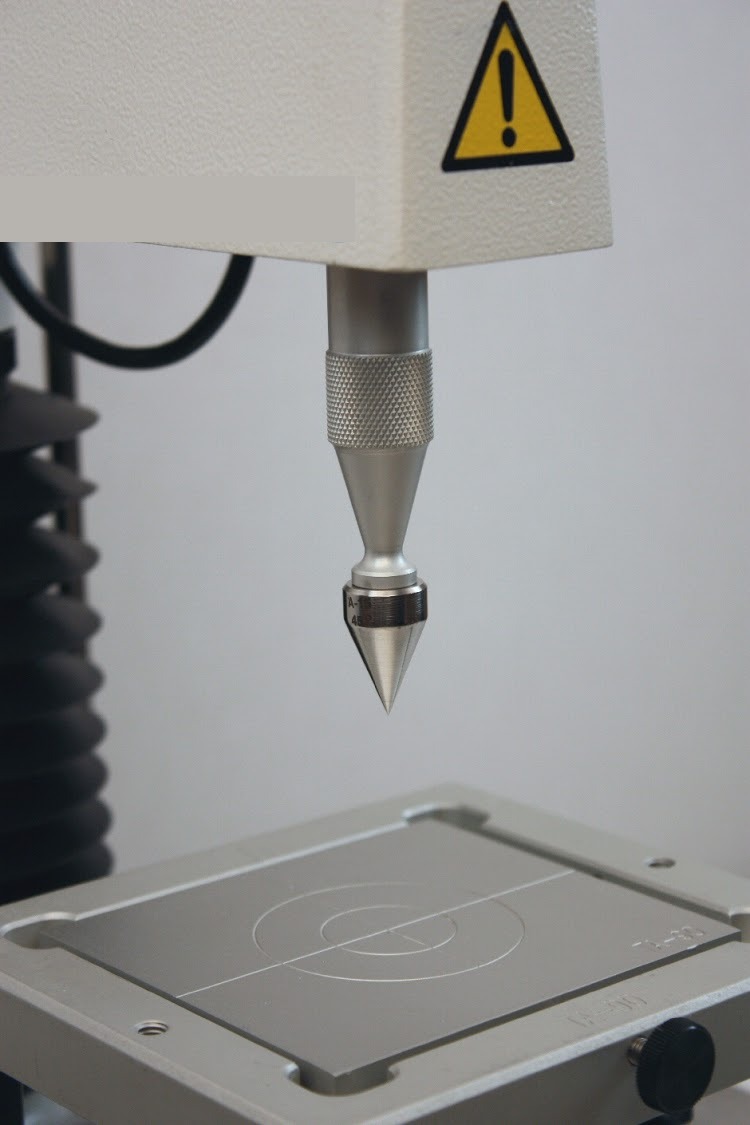

Cone penetrometer probe for butter and spreadability testing

Extrusion and Specialty

  • ›A/BE — Back extrusion 35mm (yogurt, pastes)
  • ›A/FE — Forward extrusion 25mm (dough)
  • ›A/3PB — Three-point bend rig (chocolate)
  • ›A/CONE/5° — Cone penetrometer (butter, IDF 261)
  • ›A/SPR — Spreadability rig
  • ›A/TEN — Tensile grips (dough, gum stretch)
  • ›A/NEEDLE — Needle probe 2mm (hard gels)

TA-Analyzer Pro Software

Windows 10/11. USB key license included. 50+ pre-loaded test methods. No subscription, no cloud required.

📈

Real-Time Curve Display

Live force-time and force-distance graph during testing. Auto-saves curves with timestamp and sample ID. Overlay multiple runs for batch comparison.

🧮

Automated TPA Calculation

Run the TPA method and get all 7 parameters instantly: hardness, cohesiveness, springiness, gumminess, chewiness, resilience, and adhesiveness.

📋

50+ Pre-loaded Methods

Ready-to-use: Bloom gelatin strength (AOAC 935.04), Warner-Bratzler shear, bread staling index, butter cone penetration (IDF 261), chocolate snap, back extrusion.

💾

Export and Reporting

Export raw data to CSV/Excel. PDF reports with embedded curve images. Statistical summary: mean, SD, CV%. Pass/fail QC mode with configurable spec limits.

How the TA-Pro Compares

FeatureTA-Pro 200EU BrandUS Brand
Force Resolution0.01 N ✓0.1 N0.05 N
Sampling Rate500 Hz ✓500 Hz400 Hz
Probes Included50+ ✓5–108
TPA Auto-CalcYes ✓YesYes
Pre-loaded Methods50+ ✓20–3015–20
PricingRequest Quote ✓$10,000+$8,500+
Warranty2 years ✓1 year1 year
ISO 9001Yes ✓YesYes

Competitor names withheld. Pricing based on published list prices as of 2026.

Specification Questions

What specifications should I look for in a food texture analyzer?+
Key specs: force resolution (0.01N is best-in-class for food applications), sampling rate (≥500Hz for accurate TPA curve shape), speed range (0.01–40mm/s covers slow penetration to fast snap tests), and interchangeable load cells. For most food R and D, a 200N instrument with 1N and 50N load cells covers 95% of applications.
How does 0.01N resolution compare to standard instruments?+
0.01N = 10 millinewtons ≈ 1 gram-force. At this resolution, the analyzer detects texture differences equivalent to 1 gram placed on a sample. Entry-level instruments resolve to 0.1N — 10× coarser — meaning subtle reformulation changes (e.g., changing hydrocolloid concentration by 0.1%) may go undetected.
What probes and fixtures come with the TA-Pro?+
Every TA-Pro ships with 50+ probes: compression cylinders (2–90mm), Warner-Bratzler blades, Kramer shear cells, cone penetrometers, three-point bend rigs, back extrusion sets, and tensile grips. Most competitors sell these separately at $200–$800 each.
Can the TA-Pro run the AOAC 935.04 gelatin Bloom method?+
Yes. The TA-Pro with P/12.7 probe (½-inch cylinder) and the supplied Bloom jar follows the AOAC 935.04 / ISO 9665 protocol exactly. The software pre-loads the method: 6.5°C gel preparation, 0.5mm/s probe speed, and automatic Bloom grade calculation from peak force.
How do I connect the TA-Pro to my computer?+
USB 2.0 to any Windows 10/11 PC. Install TA-Analyzer Pro from the included USB key, plug in the instrument, and the system is operational within 15 minutes. No internet connection required for operation or calibration.

Get Your Quote in 24 Hours

Tell us your application — bread TPA, gel Bloom, meat tenderness, dairy spreadability — and we will specify the right model, load cells, and probe set.
